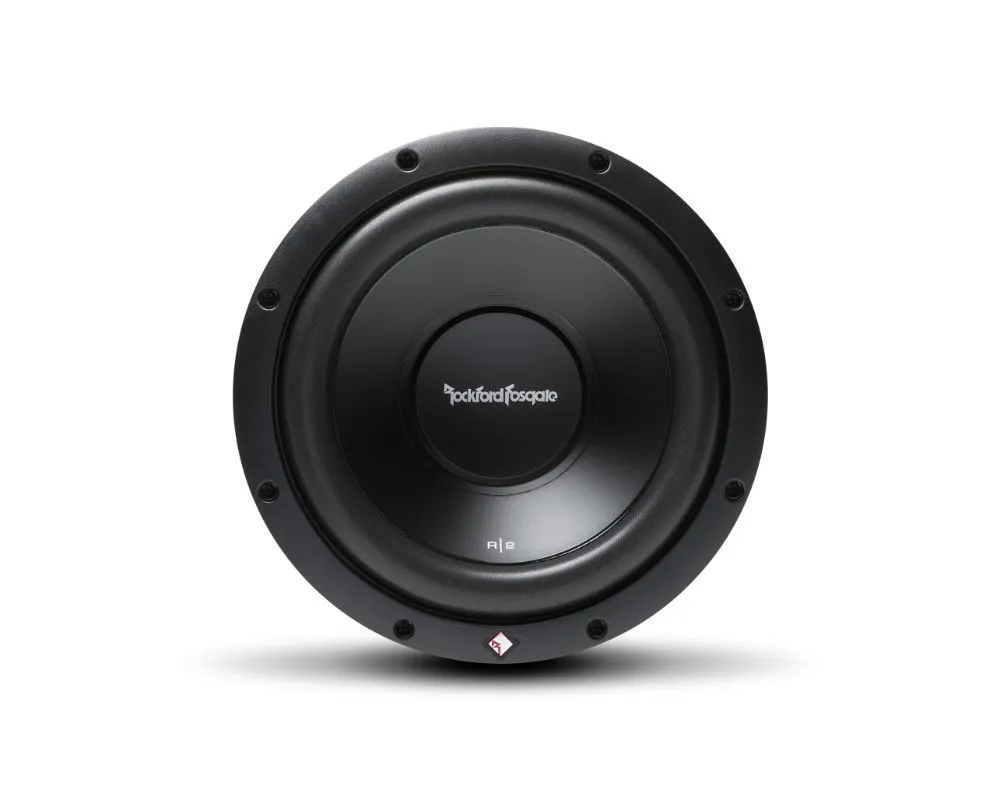

Car Audio Fanatics wanting big bass can rely on the Prime R2D2-10 subwoofer. This 10" subwoofer handles 250 Watt RMS and the 2-Ohm Dual Voice Coil design lets you to wire them in various configurations.
Car Audio Fanatics who want Rockford Fosgate quality can rely on the Prime Series 10" subwoofers to get the job done, and the Dual Voice Coil provides awesome installation flexibility. These drivers can pump out the bass due to their mica injected polypropylene cone, and their stamp-cast baskets with spider venting - typically reserved for more expensive models - keep the motor running cool! These R2 subwoofers are optimized for sealed and vented enclosures.
Features:
- 12 AWG compression terminals
- Anodized aluminum voice coil former
- Optimized for both sealed and vented enclosures
- Mica injected polypropylene cone
- Linear spider with embedded 16 AWG tinsel leads
- StampCast basket with integrated spider venting
- Integrated PVC trim ring
- 1 Year Warranty
Specifications:- Magnet Weight (oz): 43 oz. (1.22 kg.)
- Size: 10"
- Voice Coil Diameter: 2" (51 mm)
- Nominal Impedance: Dual 2-Ohm
- Speaker Connector: Dual 12 AWG compression
- Mounting Depth: 4.319 in. (109 mm)
- Shipping Weight: 8.8 Lbs. (3.99 kg)
- Qts: 0.47
- Qms: 6.93
- Qes: 0.50
- Vas (Liters): 39
- Le (mH): 3.9
- Power Handling (Watts RMS):
- 250 Watts RMS
- 500 Watts Max
- SPL (dB @ 1w/1m): 86.9
- Fs (Hz): 34.6
- Xmax (mm): 6.5
- Cutout Diameter: 9.125 in. (232 mm)
- Woofer Displacement: 0.039 cu. ft. (1.1 Liters)
- Re (Ohms): 3.84
- Sd (cm2): 339.8
- Subwoofer Type: Standard
- Voice Coil Type: Dual Voice Coil
- Sealed Box Volume (Vb): 0.59 cu. ft. (16.7 Liters)
- Vented Box Volume (Vb): 1.4 cu. ft. (39.6 Liters)
Since day one, Rockford Fosgate® spearheaded the car audio revolution. Nothing's changed. Rockford Fosgate is still the global leader in audio innovation, design and engineering, delivering an experience of passion through sound to drivers, boaters, motorcyclists and off-road enthusiasts.
Rockford Corporation offers a limited warranty on Rockford Fosgate products:
Length of Warranty- All Speakers – 1 Year
- Signal Processors – 1 Year
- PRIME Amplifiers – 1 Year
- PUNCH Amplifiers – 1 Year
- POWER Amplifiers – 2 Years
- Any Factory Refurbished Product – 90 days (receipt required)
What is CoveredThis warranty applies only to Rockford Fosgate products sold to consumers by Authorized Rockford Fosgate Dealers in the United States of America or its possessions. Product purchased by consumers from an Authorized Rockford Fosgate Dealer in another country are covered only by that country's Distributor and not by Rockford Corporation.
Who is CoveredThis warranty covers only the original purchaser of Rockford product purchased from an Authorized Rockford Fosgate Dealer in the United States. In order to receive service, the purchaser must provide Rockford with a copy of the receipt stating the customer name, dealer name, product purchased and date of purchase. Products found to be defective during the warranty period will be repaired or replaced (with a product deemed to be equivalent) at Rockford's discretion.
What is Not Covered1. Damage caused by accident, abuse, improper operations, water, theft2. Any cost or expense related to the removal or reinstallation of product3. Service performed by anyone other than Rockford or an Authorized Rockford Fosgate Service Center4. Any product which has had the serial number defaced, altered, or removed5. Subsequent damage to other components6. Any product purchased outside the U.S.7. Any product not purchased from an Authorized Rockford Fosgate Dealer
Limit on Implied WarrantiesAny implied warranties including warranties of fitness for use and merchantability are limited in duration to the period of the express warranty set forth above. Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for Rockford Fosgate any other liability in connection with the sale of the product.
How to Obtain ServicePlease call 1-800-669-9899 for Rockford Customer Service. You must obtain an RA# (Return Authorization number) to return any product to Rockford Fosgate. You are responsible for shipment of product to Rockford.
EU WarrantyThis product meets the current EU warranty requirements, see your Authorized dealer for details.
Warranty Outside the USAThe above warranty information is for residents located within the United States of America. For warranty and service information outside the USA, please select the Authorized World Wide Distributor for your country as details vary by country.
WARNING: Cancer and Reproductive Harm
