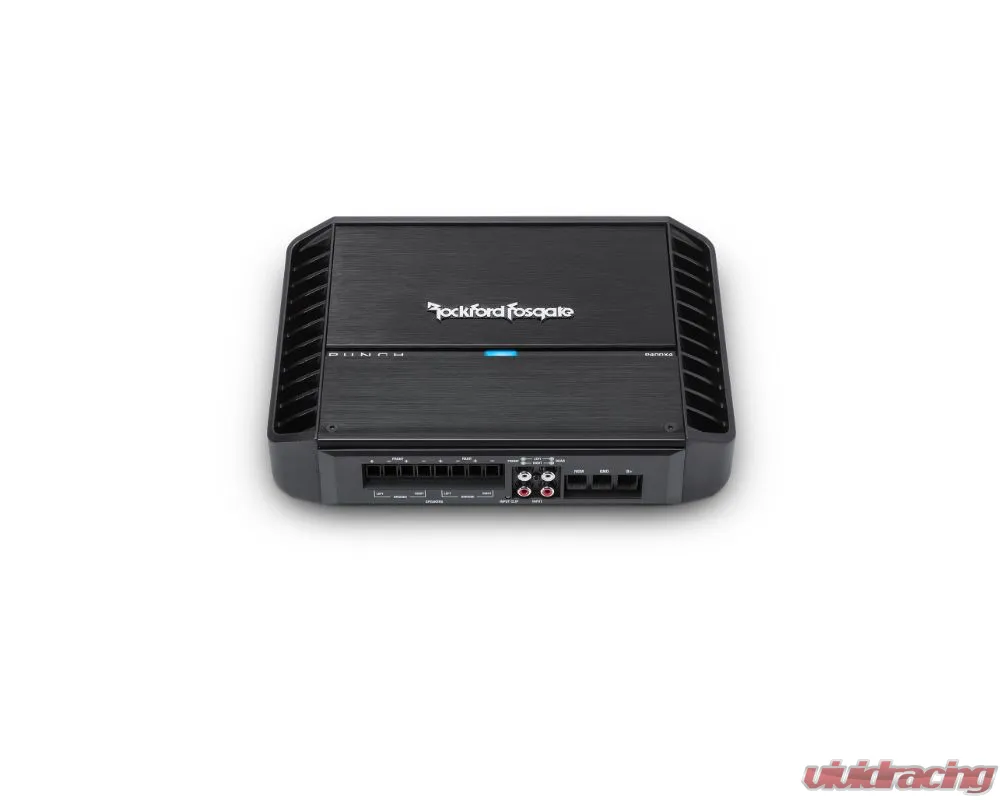

The Punch P400X4 is a 4-channel amplifier producing 100 Watts into all four channels at 2-Ohm. The P400X4 is perfect for a 4-way full-range system or a 3-way system having a front stage with subwoofers on the rear channels.
The P400X4 is perfect for 4-way front-stage/rear-fill or 3-way front-stage/subwoofer systems. Simply drop a pair of component speakers on the front channels and subs on the rear and BOOM - you got "The PUNCH." With its flexible design, the P400X4 is an excellent amplifier choice for virtually any vehicle.
Features:
- High level input capable with Auto Turn-On circuit
- RCA pass-thru outputs
- Features C.L.E.A.N. Set-up
- 12dB/octave Butterworth crossover
- On-board Punch EQ with +18dB boost @ 45Hz
- Muted turn on
- Stealth top mounted control panel
- Cast aluminum heatsink
- Short circuit protection
- Over current protection
- 1 Year Warranty
Specifications:- Number of Channels: 4
- Total Power (Sum of Rated Power): 400 Watts
- Rated Power (RMS Continuous Power):
- 50 Watts x 4 @ 4-Ohm
- 100 Watts x 4 @ 2-Ohm
- 200 Watts x 2 @ 4-Ohm Bridged
- Dynamic Power (PVC/PowerCube®):
- 82 Watts x 4 @ 4-Ohm
- 137 Watts x 4 @ 2-Ohm
- 266 Watts x 2 @ 4-Ohm Bridged
- Bridgeable: Yes
- Frequency Response: 20Hz to 20kHz +/- 1.0dB
- Input Sensitivity: 150 mV - 12 V
- Circuit Topology Class: Class A/B
- Efficiency (average): 67% @ 4-Ohm
- Total Harmonic Distortion (THD+Noise):
- Signal Input: Hi/Low level: 2 RCA pair
- Tone Controls:
- Front Punch EQ2 Bass: 0dB to +18dB @ 45Hz and/or
- Front Punch EQ2 Treble: 0dB to +12dB @ 12.5kHz
- Rear Punch EQ2 Bass: 0dB to +18dB @ 45Hz and/or
- Rear Punch EQ2 Treble: 0dB to +12dB @ 12.5kHz
- Function depends upon LP/AP/HP switch position
- Crossover Controls:
- Front High-Pass/Low-Pass (HP/LP): 50Hz-250Hz @ 12dB/octave Butterworth
- Rear High-Pass/Low-Pass (HP/LP): 50Hz-250Hz @ 12dB/octave Butterworth
- All-Pass: Yes
- Visual Indicators:
- Power/Protect/Thermal LED
- Input Clip LED3
- Output Clip LED1,2,3
- LED Color Legend: 1BLUE: <0.5% THD
- 2VIOLET: 1% THD
- 3RED: 10%+ THD
- Power Wire Gauge: 8 AWG to 4 AWG
- Power Input Connector: Captive C-Clamp
- Speaker Wire Gauge: 8 AWG to 18 AWG
- Speaker Output Connector: Captive C-Clamp
- Cooling: Convection
- Operating Voltage: 9 - 16 VDC
- Recommended Fuse (not included): 60 A
- Average Current Draw (13.8V Music): 30 A
- Max. Current Draw (13.8V Sinewave): 60 A
- Suggested Alternator: 75 A
- Dimensions (H x W x D):
- 2.38 x 7.76 x 11.03 (in)
- 6.05 x 19.71 x 28.02 (cm)
- Shipping Weight: 10.8 Lbs. (4.89 Kg.)
